Export onlyT09

T09 H4 Bi-LED Projector Headlight Bulb, 9-90V AC/DC, High Low Beam with Built-in Electromagnetic Shutter,

Model: LSP-T09-H4

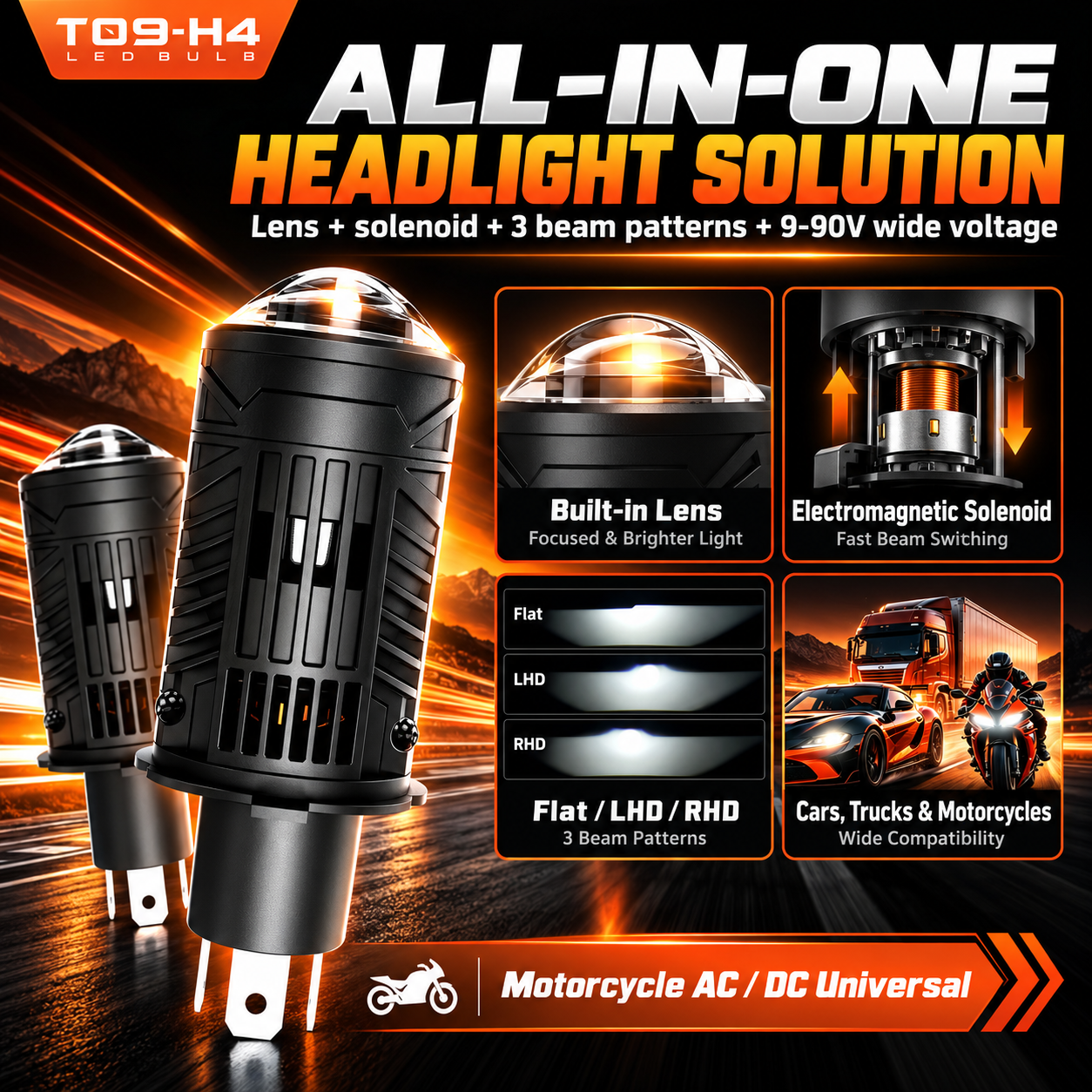

The T09-H4 combines an LED light source and optical projector lens in one compact unit, delivering more concentrated and controlled illumination than a conventional LED replacement bulb.

T09 is an H4 Bi-LED projector bulb integrating the LED source, optical lens and electromagnetic low/high-beam shutter.

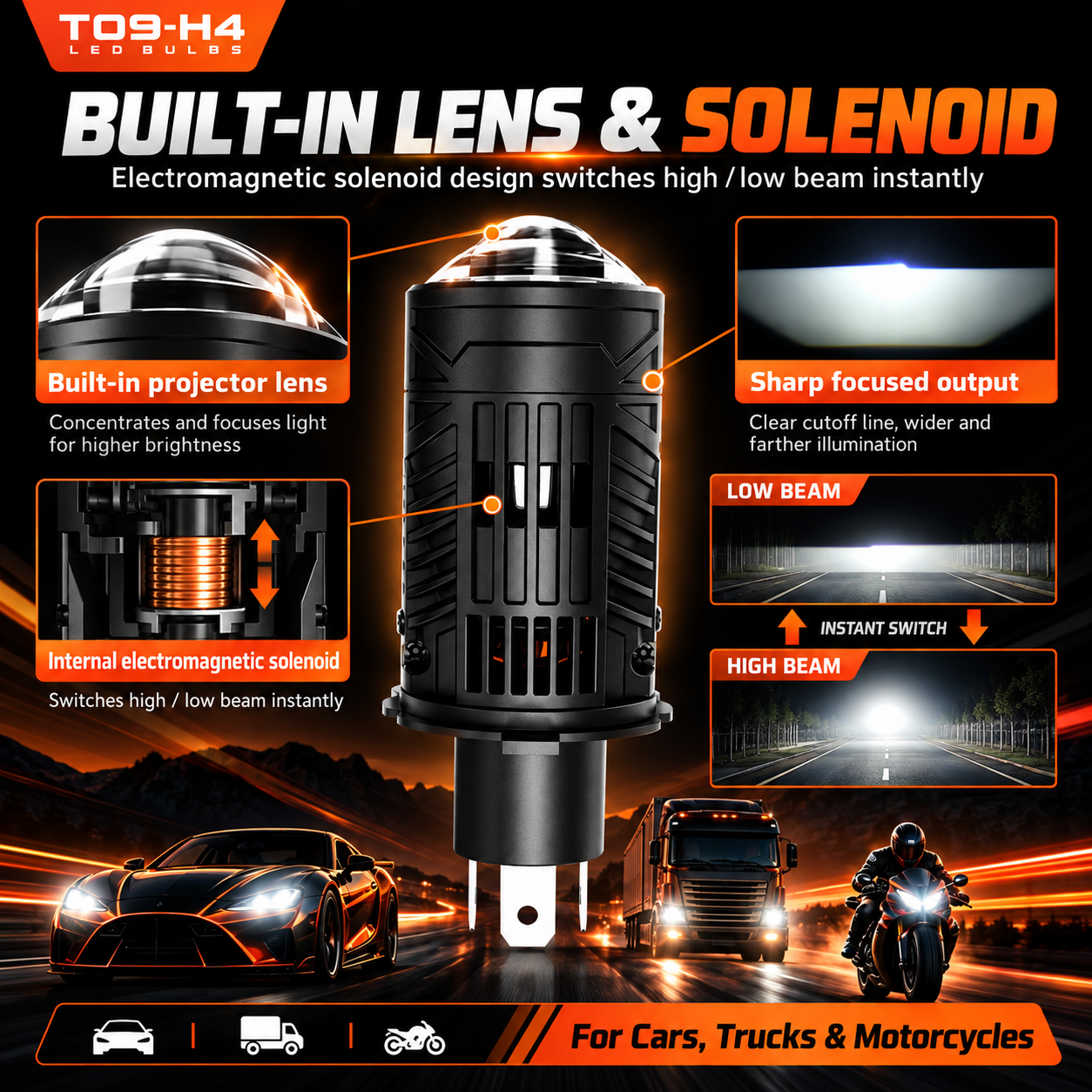

The integrated electromagnetic shutter enables responsive switching between high and low beams, providing two lighting functions through one H4 bulb.

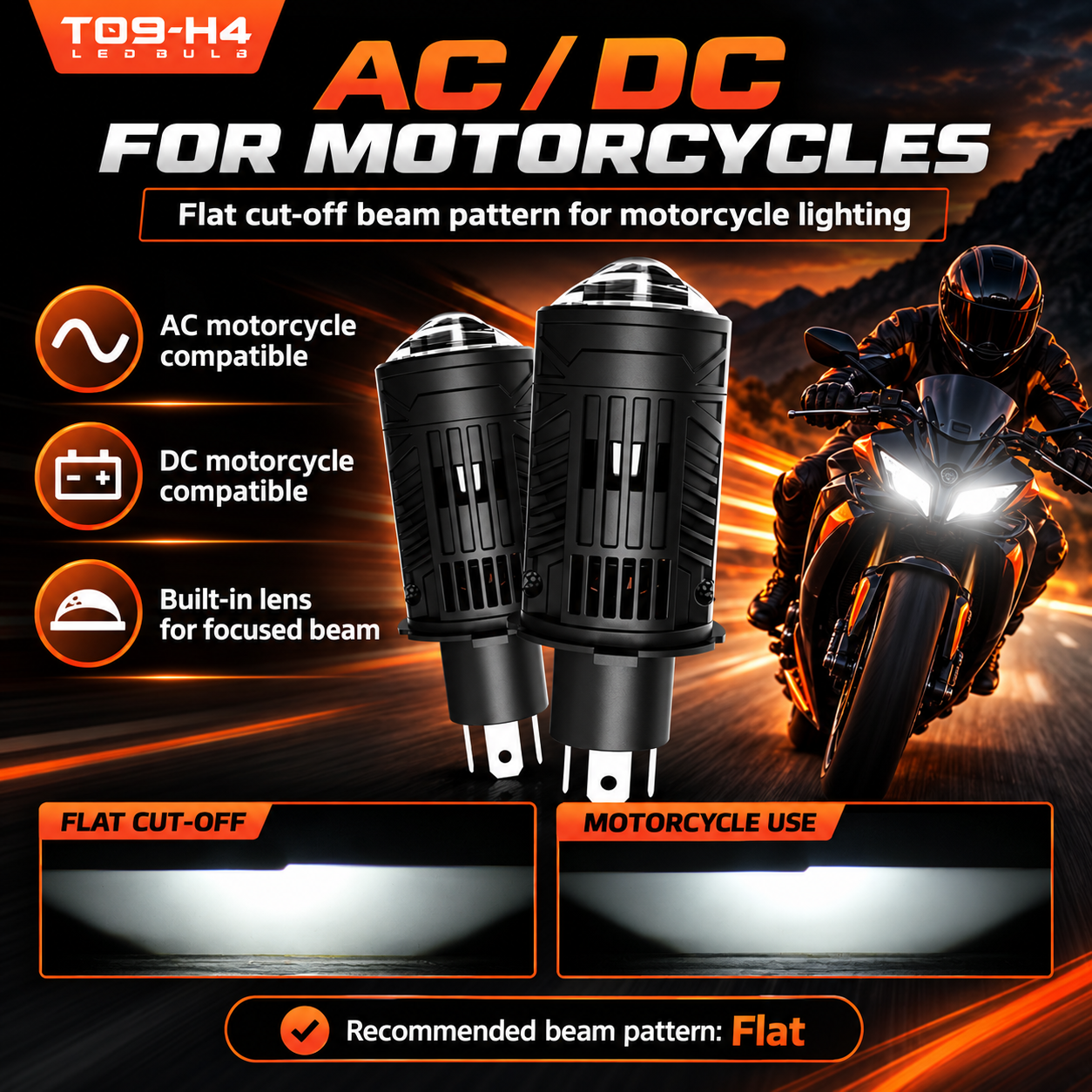

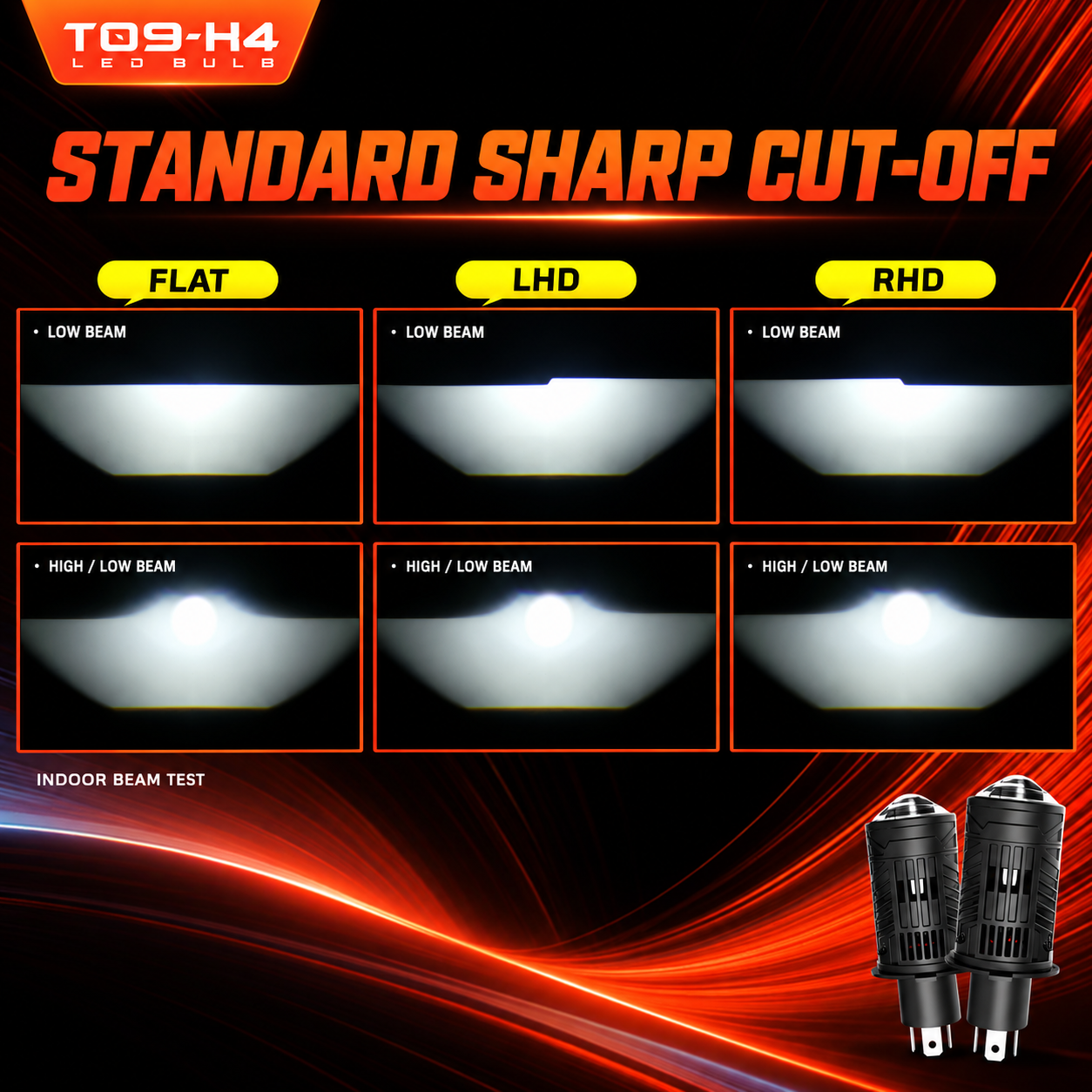

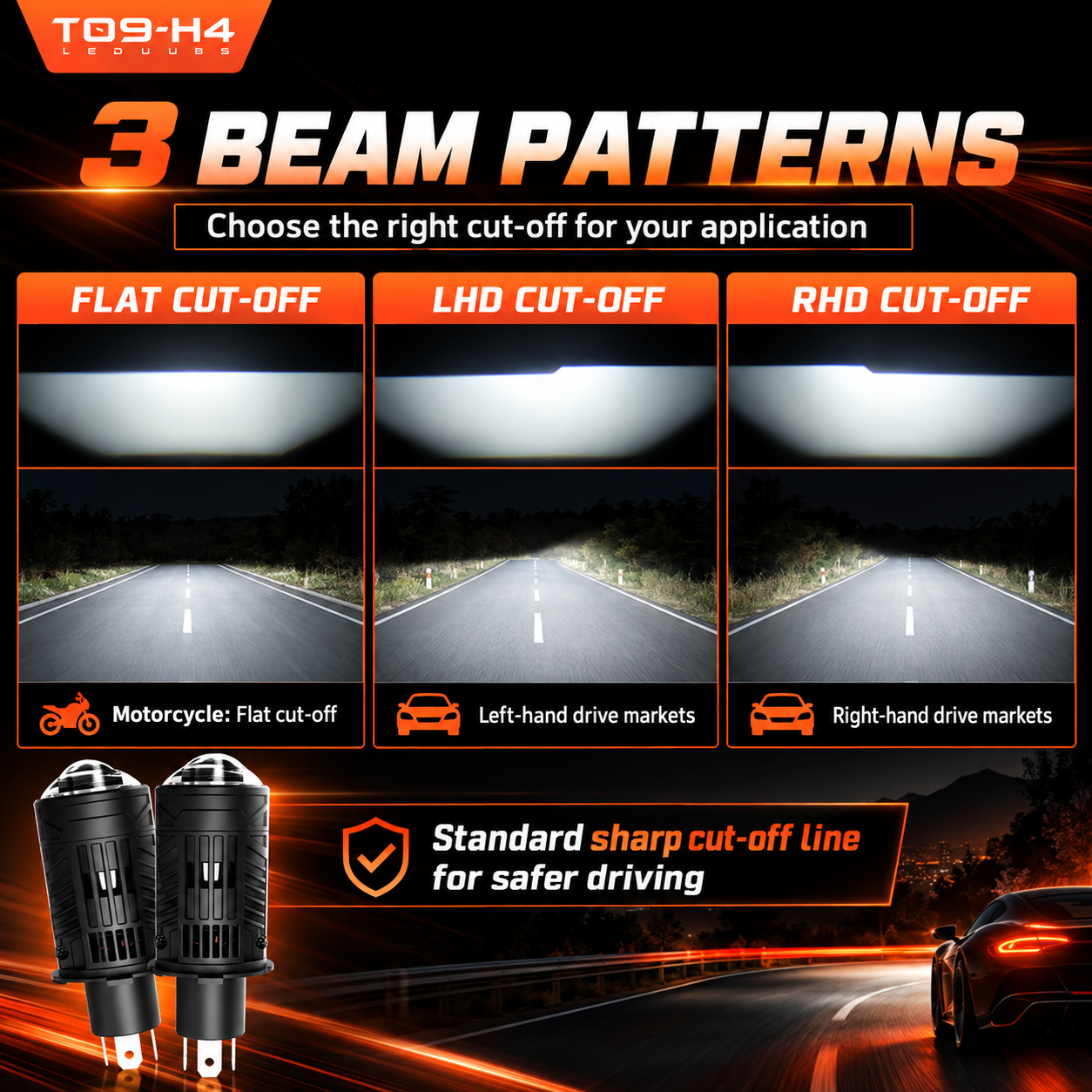

Choose from left-hand-drive, right-hand-drive or flat-cutoff beam patterns for different driving markets and vehicle applications. The flat-cutoff version is recommended for motorcycles.

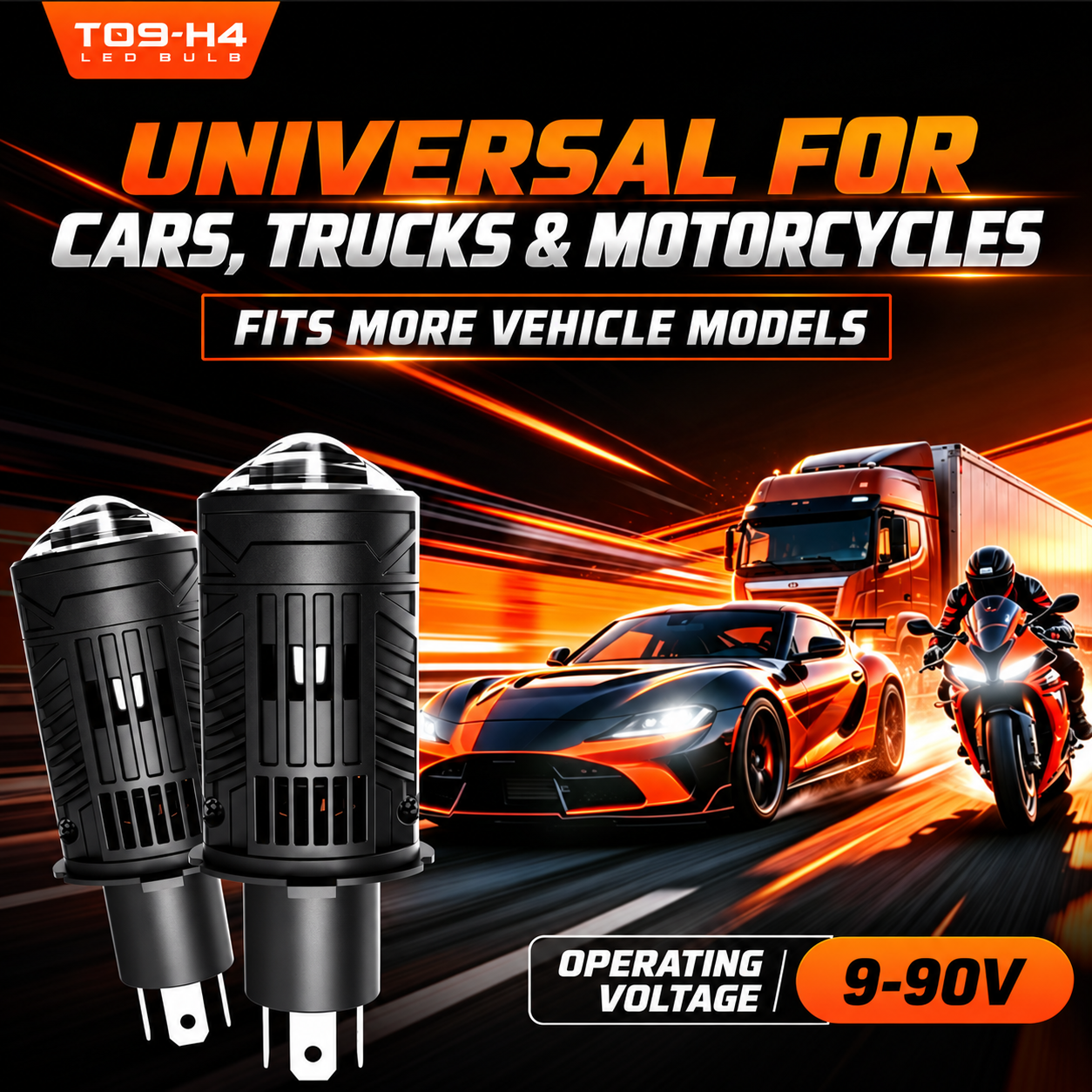

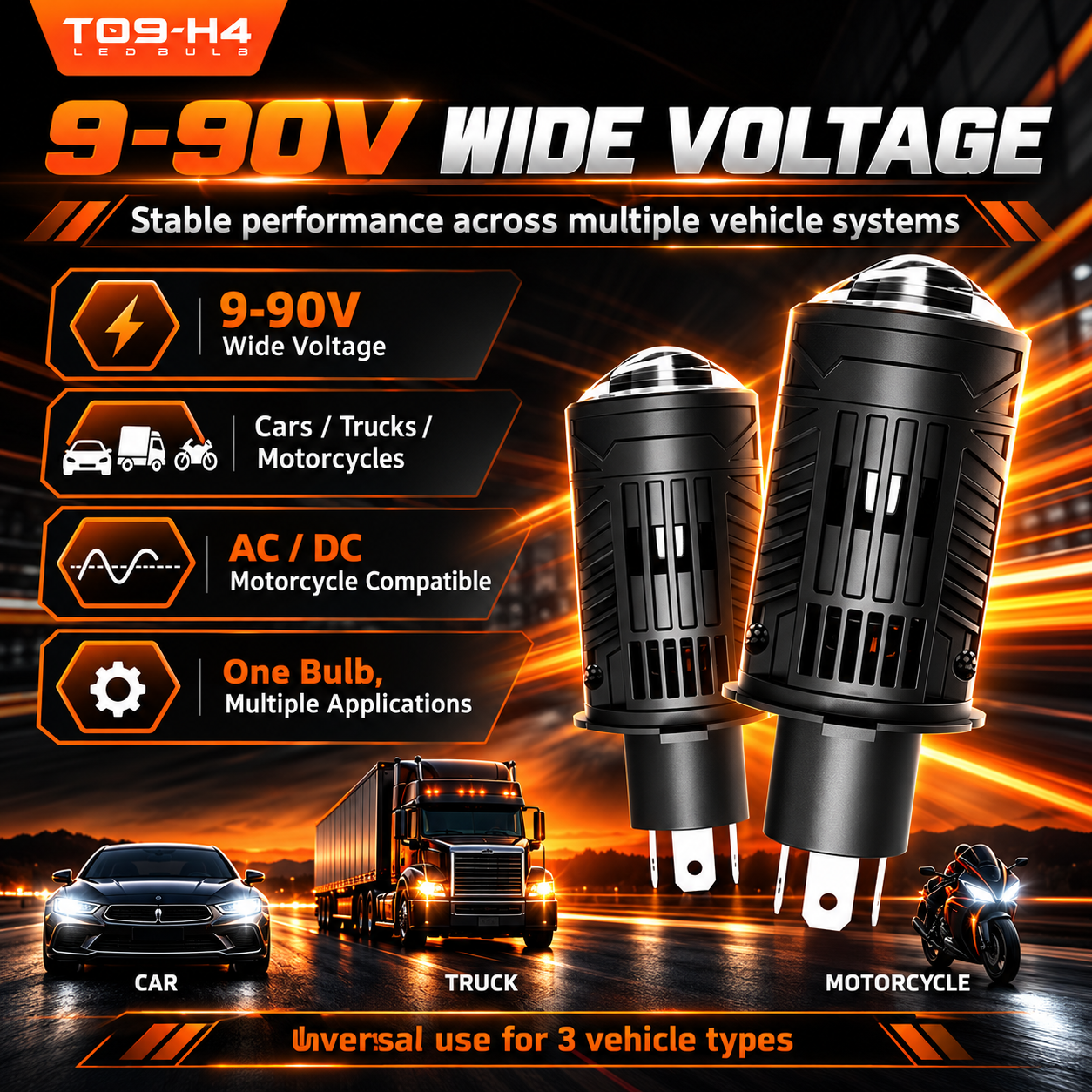

The wide-voltage design supports cars, light trucks and motorcycles. AC/DC compatibility makes it suitable for different motorcycle electrical systems.


Equipped with GC-7035 and GC-5050 LED chips, the bulb provides stable output of up to 45W and 2250LM on high beam, and 40W and 1800LM on low beam.

Request quote for this modelGet catalog

Key specifications

power70W
lumen3300LM
voltage9-90V
chipGC-7035/GC-5050
basesH4

Compatibility

Designed for H4 sockets and 9–90V AC/DC systems. Confirm H4 wiring, housing space, projector orientation, cooling clearance and local vehicle-lighting rules.

Frequently Asked Questions

What is the T09?

T09 is an H4 Bi-LED projector bulb integrating the LED source, optical lens and electromagnetic low/high-beam shutter.

How do I confirm T09 compatibility?

Designed for H4 sockets and 9–90V AC/DC systems. Confirm H4 wiring, housing space, projector orientation, cooling clearance and local vehicle-lighting rules.

What information is needed for a bulk T09 order?

Provide the target market, vehicle or socket, operating voltage, quantity and packaging requirements. For beam-pattern, decoding or head-unit fitment, also send factory photos or system details for verification before quotation.
